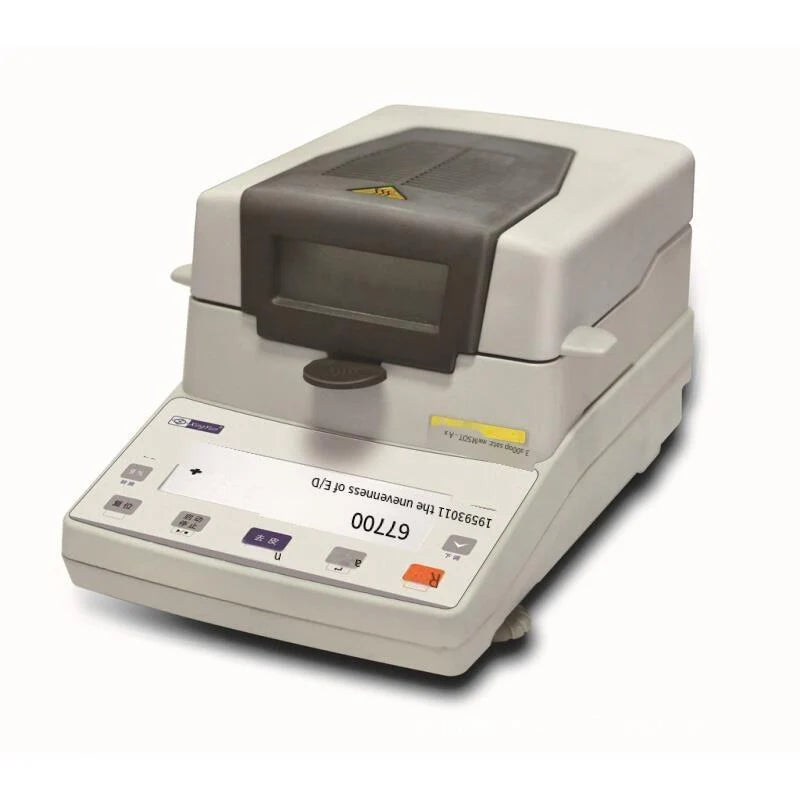

Paper Moisture Tester Paper Moisture Meter

Advanced sensors are used to accurately measure the moisture content of cardboard, paper, corrugated boxes, wood and so on. Can be measured on the paper roll machine, can also be measured on the stack of paper moisture.

• Product Models: XY-105W, XY-102W, XY-100W
• Maximum Weighing Capacity: 110 g
• Accuracy:
  • XY-105W: 0.005 g
  • XY-102W: 0.002 g
  • XY-100W: 0.001 g
• Temperature Use Range: 5°C to 35°C
• Display: Liquid crystal display
• Calibration Mode: External calibration
• Scale Size: 290 mm
• Product Size: 200 × 180 × 380 mm
• Net Product Weight: 5.8 kg
• Heating Mode: Halogen lamp
• Temperature Sensor: Halogen lamp PT-100
• Temperature Range: 40°C to 199°C, 1°C step
• Moisture Range: 0.00% to 100%
• Moisture Readable: 0.01%
• Precision Dry: 100.00% to 0.00%
• Residual Range: 0.01%
• Dry Residual Readable: 100% to 999%
• ATRO: 0% to 999%
• Temperature Setting: 40°C to 199°C by 1°C step
• Time Setting: 1 to 99 minutes by 1 second step
• Automatic Stop: 0.1% to 9.9% within 1 minute
• Storage History: 15 records
• Heating Part Power Supply: 220V ±15%, 50Hz / 115V ±15%
• Heating Power: 400 W
• Balance Part Output: External power supply 9V
• Balance Part Input: 20V ±15%, 50Hz
