Description
Main Function

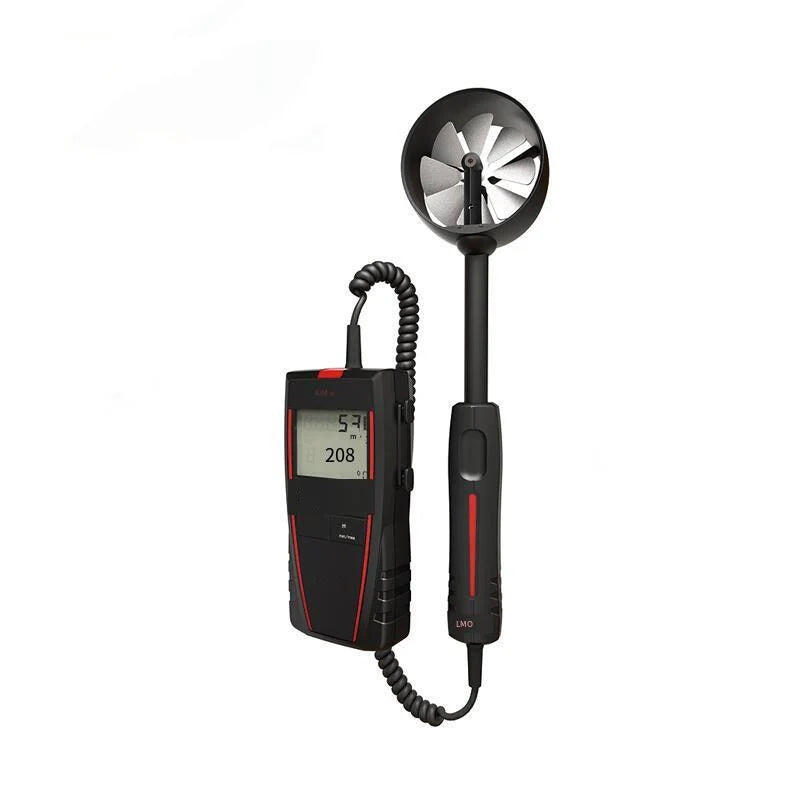

The KIMO LV117 is used to measure wind speed, air volume, and air temperature. It is suitable for HVAC inspection, air supply and exhaust testing, ventilation duct measurement, and general airflow detection.
Key Features
| Feature | Details |
|---|---|
| Brand | KIMO Instruments |
| Product Model | LV117 |
| Product Type | Portable impeller anemometer |
| Measurement Functions | Wind speed, air volume, temperature |
| Probe Type | Impeller wind speed probe |
| Impeller Diameter | Ø70 mm |
| Cable Type | 300 mm roll / coiled cable type |
| Expanded Cable Length | 2.4 m after expansion |
| Display | LCD display with backlight |
| Air Volume Function | Air volume calculation supported |
| Average Function | Automatic average calculation function |
| Measured Value Freeze | Freeze-frame value supported |
| MAX / MIN Function | Maximum and minimum value display |
| Measurement Unit Selection | Supports selectable measuring units |
| Auto Shutdown | Can be set from 0–120 minutes |
| Power Supply | 4 × 1.5V DC batteries |
| Battery Life | Up to 120 hours |
| Weight | 390 g |
| Certification | CE shown |
Product Features
| Feature | Description |
|---|---|
| Easy Operation | Portable design with simple operation controls |
| Backlit Display | LCD backlight makes readings easier to see |
| Air Flow Detection | Used to detect air supply or exhaust airflow in pipes and ducts |
| Air Volume Calculation | Select rectangular or circular pipe type and enter pipe size to calculate air volume |
| Freeze Function | Holds measured values for easier reading and recording |
| MAX / MIN Function | Displays maximum and minimum measured values |
| Automatic Average | Automatically calculates average wind speed measurement |
| Auto Power Off | Adjustable automatic shutdown from 0 to 120 minutes |
Application Scope
| Application Area | Details |
|---|---|
| Ventilation Ducts | Wind speed and air volume testing |
| Air Supply Systems | Air supply flow measurement |
| Exhaust Systems | Exhaust airflow measurement |
| HVAC Systems | Heating, ventilation, and air-conditioning inspection |
| Pipe Airflow Testing | Rectangular or circular duct airflow measurement |
| Industrial Ventilation | Air movement and ventilation checking |
Product Structure / Parts
| Part | Details |
|---|---|

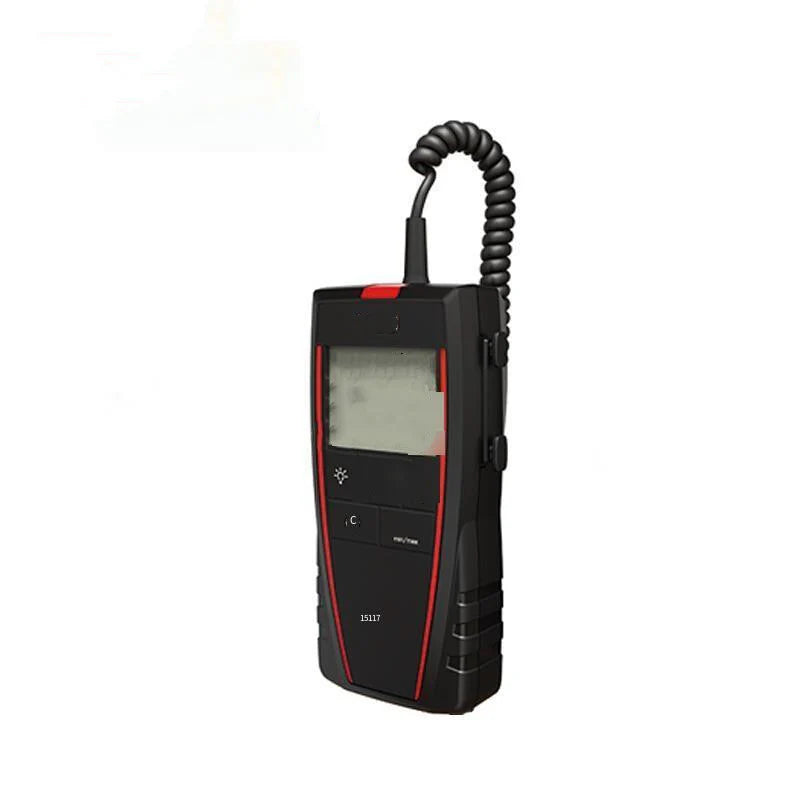

| Main Instrument | LV117 handheld meter |
| LCD Display | Shows wind speed, air volume, and temperature readings |
| Control Buttons | 5 buttons for operation and settings |

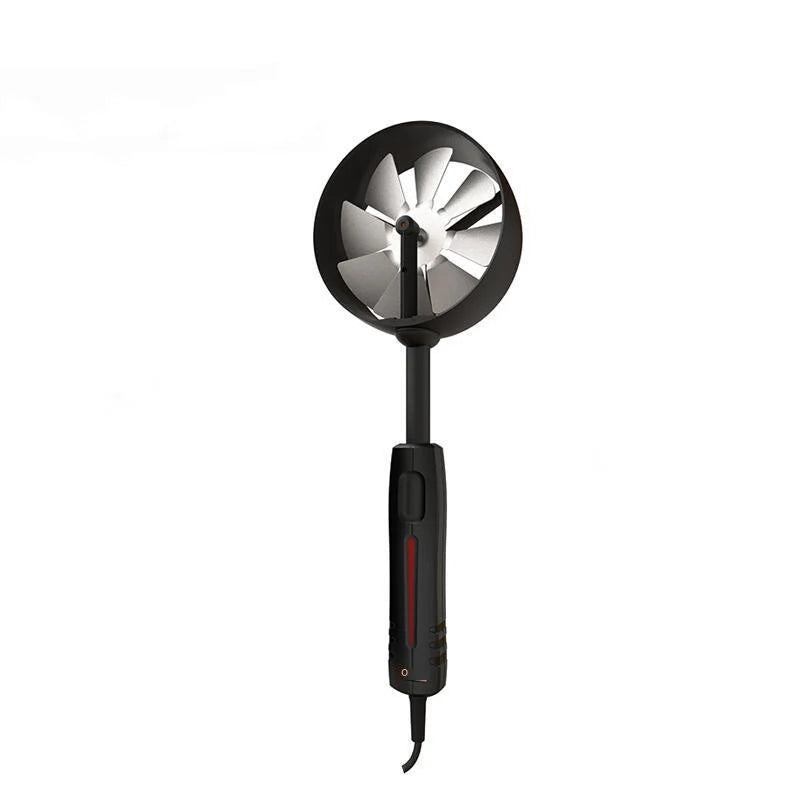

| Impeller Probe | Ø70 mm impeller probe for air velocity measurement |
| Coiled Cable | Connects probe with main instrument |
| Probe Handle | Handheld probe grip for airflow measurement |
| Protective Body | Black and red portable housing |
Product Dimensions
| Item | Size |
|---|---|
| Main Unit Width | 71.5 mm |
| Main Unit Thickness | 34.2 mm |
| Main Unit Height | 83 mm shown |
| Bottom Width | 76.7 mm |
| Impeller Diameter | Ø70 mm |
| Cable Length After Expansion | 2.4 m |
Technical Specifications
| Parameter | Specification |
|---|---|
| Wind Speed Units | m/s, fpm, km/h |
| Wind Speed Range | 0.4–35 m/s |
| Wind Speed Accuracy | 0.4–3 m/s: ±0.1 m/s ±3% measured value; 3.1–35 m/s: ±0.3 m/s ±1% measured value |
| Wind Speed Resolution | 0.1 m/s |
| Air Volume Units | m³/h, cfm, L/s, m³/s |
| Air Volume Range | 0–99999 m³/h |
| Air Volume Accuracy | ±0.03 × cross-sectional area |
| Air Volume Resolution | 1 m³/h |
| Temperature Units | °C, °F |
| Temperature Range | 0°C to 50°C |
| Temperature Resolution | 0.1°C |
| Display Type | LCD display |
| Display Layout | 4 rows; 5 × 3 mm digits; 2 rows of 5-bit units |
| Probe | Ø70 mm impeller wind speed probe |
| Cable | 300 mm roll type, 2.4 m after expansion |
| Buttons | 5 buttons |
| Power Supply | 4 × 1.5V DC batteries |
| Battery Life | 120 hours |
| Use Environment | 0°C to 50°C, non-condensing, 0–2000 m |
| Storage Temperature | -20°C to 80°C |
| Auto Power Off | 0–120 minutes adjustable |
| Weight | 390 g |
Standards / Compliance
| Standard | Details |
|---|---|
| EMC | 2014/30/EU |
| Low Voltage | 2014/35/EU |
| RoHS | 2011/65/EU |
| WEEE | 2012/19/EU |
| CE | CE marking shown |
Optional Accessories
| Accessory | Details |
|---|---|
| Protective Sleeve for Main Instrument | Model CQ 15 |
| Telescopic Extension Rod | Length 1 m |
| Top Corner 90° Adapter | Model RTE |
Main Benefits
- Portable and easy to operate
- Measures wind speed, air volume, and temperature
- Ø70 mm impeller probe for airflow measurement
- Coiled cable extends up to 2.4 m for flexible use
- Backlit LCD display for clear reading
- Supports MAX, MIN, freeze, and automatic average functions
- Calculates air volume using duct size input
- Suitable for supply air, exhaust air, and ventilation duct testing
