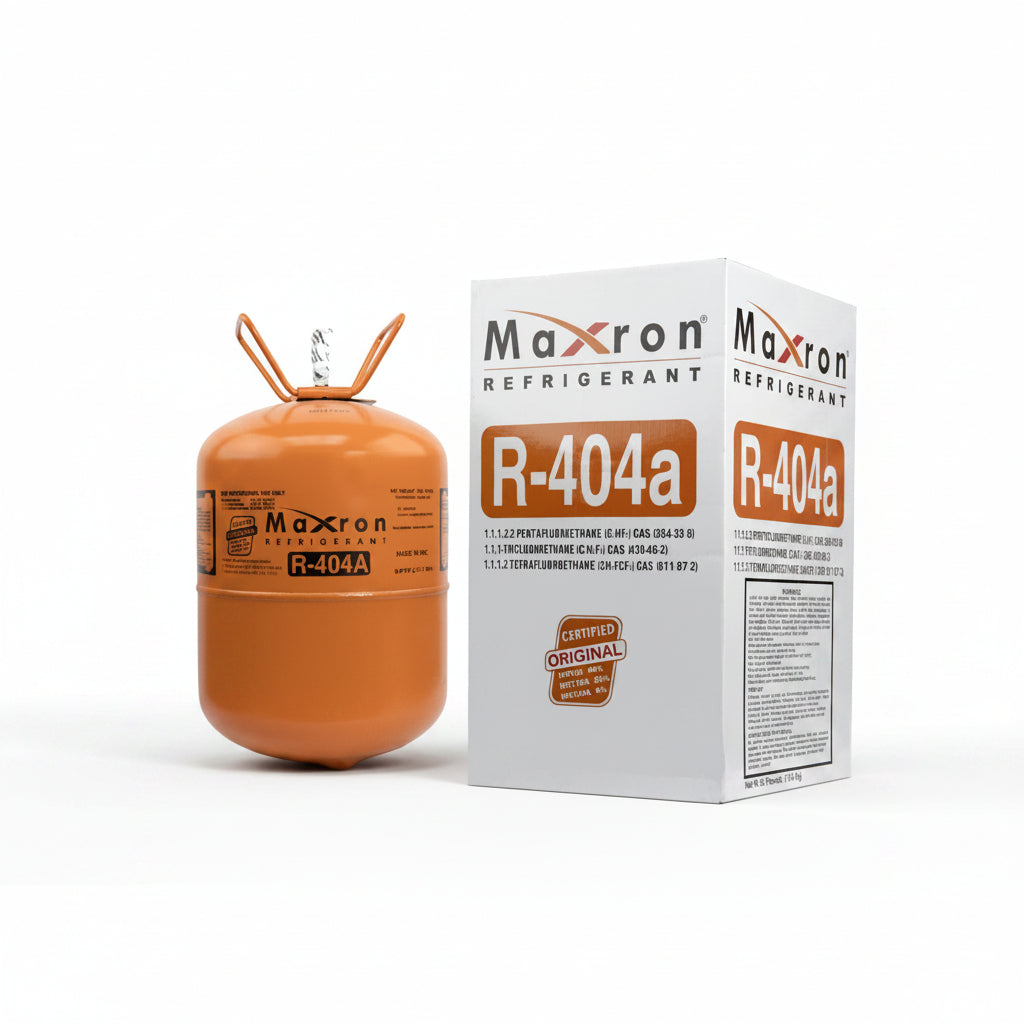

R404a Refrigerant MAXRON
Key features
PHYSICAL AND CHEMICAL PROPERTIES Chemical Name Pentafluoroethane, 1,1,1-Trifluoroethane 1,1,1,2-Tetrafluoroethane Chemical Formula CHF2CF3, CH3CF3, CH2FCF3 Molecular Weight 97.6 Odor Faint Ethereal Odor Specific Gravity (water = 1.0) 1.08 @ 21.1°C (70°F) pH Neutral Boiling Point -47.8 °C (-54.0 °F) Freezing Point Not Determined Vapor Pressure 182.9 psia @ 21.1 °C, 370.9...Shop with confidence
| PHYSICAL AND CHEMICAL PROPERTIES | |
| Chemical Name | Pentafluoroethane, 1,1,1-Trifluoroethane
1,1,1,2-Tetrafluoroethane |
| Chemical Formula | CHF2CF3, CH3CF3, CH2FCF3 |
| Molecular Weight | 97.6 |
| Odor | Faint Ethereal Odor |
| Specific Gravity (water = 1.0) | 1.08 @ 21.1°C (70°F) |
| pH | Neutral |
| Boiling Point | -47.8 °C (-54.0 °F) |
| Freezing Point | Not Determined |
| Vapor Pressure | 182.9 psia @ 21.1 °C, 370.9 psia @ 54.4 °C |
| Vapor Density | 3.43 (Air =1.0) |
| Evaporate Rate | >1 |
| % Volatiles | 100 |
Maxron 404A is a Non-Ozone Depleting, Non-Toxic, Non-Flammable Refrigerant developed for a variety of Medium and Low-Temperature Refrigeration applications. The type of Maxron R-404 is HFC – Azeotropic blends of three refrigerants namely R 143a (52%), R 125 (44%) & R 134a (4 %). Maxron 404A blends are suitable for Refrigeration applications like Food Display Cases, Deep Freezers, Storage Cases, Cold storage Rooms, Ice machines, Food processing units, Industrial Refrigeration. Also in Transport Refrigeration like Refrigerated Trucks, Refrigerated Containers, Vessels and Trawler Cold Rooms. Maxron R-404a is an HFC Azeotropic blend and for this reason, it is suggested to use the Liquid form of Refrigerant for charging the system to avoid damage.
