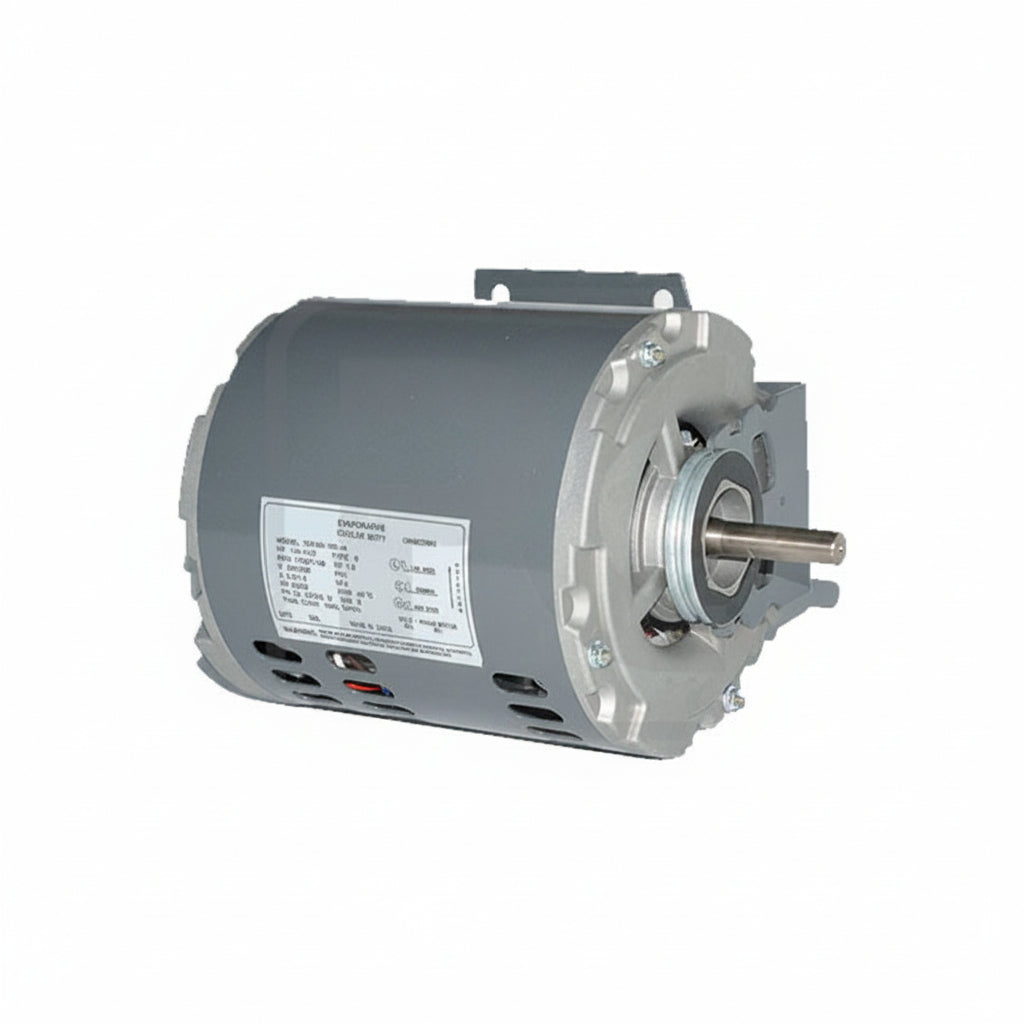

Single Phase IP44 / IP54 Asynchronous AC Air Cooler Motor With 2000 Air Flow

Key features

YDK series single-phase capacitor start induction motor is suitable for anywhere a larger starting torque and the starting current to be limited are required, and is used as driving motor of air compressors, refrigerators, medical apparatus, and other small machines in which full-load starting is demanded. These series motors are...

Shop with confidence

Payment Badge
Fast Delivery
Payment Badge
Buy Now Pay Later
Payment Badge
Secure Payments
Payment Badge
Trusted Quality

YDK series single-phase capacitor start induction motor is suitable for anywhere a larger starting torque and the starting current to be limited are required, and is used as driving motor of air compressors, refrigerators, medical apparatus, and other small machines in which full-load starting is demanded.

These series motors are totally enclosed fan-cooled and have three frame sixes 09, 1 and 2. The frame is made of cast iron or cast aluminum according to the requests.

OPERATING CONDITIONS

Product Type YDK Series Single-Phase Capacitor Start Induction Motor
Applications - Air compressors
- Refrigerators
- Medical apparatus
- Other small machines requiring full-load starting
Cooling Method Totally enclosed fan-cooled (IC411)
Frame Sizes 09, 1, and 2
Frame Material Cast iron or cast aluminum (according to requirements)
Ambient Temperature -15°C to 40°C
Altitude Not exceeding 1000m
Rated Voltage Options 110V, 115V, 120V, 220V, 240V
Rated Frequency 50Hz/60Hz
Protection Class IP44/IP54
Insulation Class B/F
Duty S1 (Continuous)

Product specification:

Model Power (HP) Voltage (V) Frequency (Hz) Speed (RPM) Rotation Insulation Class
YDK140-150-6T5 1/5 220-240 50 850/3 SPD CCW B
YDK160-185-4A 1/4 115/127 50/60 1425/1725 CW-SE B
YDK160-185-4A2 1/4 220/230 50/60 1425/1725 CW-SE B
YDK160-245-4A 1/3 115/127 50/60 1425/1725 CW-SE B
YDK160-375-4A 1/2 115/127 50/60 1425/1725 CW-SE B
YDK160-375-4A2 1/2 220/230 50/60 1425/1725 CW-SE B
YDK160-550-4A2 3/4 220/230 50/60 1425/1725 CW-SE B
YDK160-735-4A 1 115/127 50/60 1425/1725 CW-SE B
YDK160-735-4A2 1 220/230 50/60 1425/1725 CW-SE B
