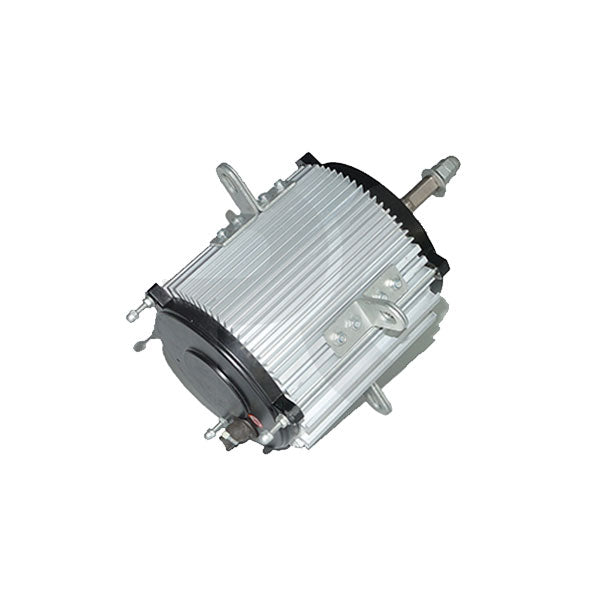

YS-370-8 – IP54 50Hz Three Phase Waterproof Heat Pump Fan Motor B Insulation Class

Key features

Product application: Central air conditioner outdoor fan and other similar purposes. Product features: 1. Customized aluminum enclosure, high efficiency, low noise, small vibration, high waterproof grade. 2. Nickel plating for shaft, electrophoretic coating for the enclosure. 3. Use NSK low noise high-quality rolling bearing. IP54 50Hz Three Phase Waterproof Heat...

Shop with confidence

Payment Badge
Fast Delivery
Payment Badge
Buy Now Pay Later
Payment Badge
Secure Payments
Payment Badge
Trusted Quality

Product application:

Central air conditioner outdoor fan and other similar purposes.

Product features:

1. Customized aluminum enclosure, high efficiency, low noise, small vibration, high waterproof grade.

2. Nickel plating for shaft, electrophoretic coating for the enclosure.

3. Use NSK low noise high-quality rolling bearing.

IP54 50Hz Three Phase Waterproof Heat Pump Fan Motor B Insulation Class

Product Type Three Phase Waterproof Heat Pump Fan Motor
Frequency 50Hz
Protection Grade IP54
Insulation Class B
Application Central air conditioner outdoor fan and other similar purposes
Features - Customized aluminum enclosure
- High efficiency, low noise, small vibration
- High waterproof grade
- Nickel plating for shaft
- Electrophoretic coating for enclosure
- NSK low noise high-quality rolling bearing

Product specification:

Model Voltage (V) Frequency (Hz) Power (W) Speed (RPM) Current (A)
YDK100-6 220 50 100 850/700 0.85
YDK150-6 220 50 150 800/600 1.5
YDK-200-6 220 50 200 830/600 2
YDK-270-6 220 50 270 630/400 1.5
YDK-380-6 220 50 380 680/400 2
YDK-450-6 220 50 450 1000 3.5
YS-250-6 380~415 50 250 925 0.9
YS-370-6 380~415 50 370 925 1.3
YS-550-6 380~415 50 550 925 1.4
YS-750-6 380~415 50 750 720 2.5
YS-120-8 380~415 50 120 925 1
YS-370-8 380~415 50 370 720 1.5
YS-550-8 380~415 50 550 710 2
YS-750-8 380~415 50 750 - -
